Product
Details

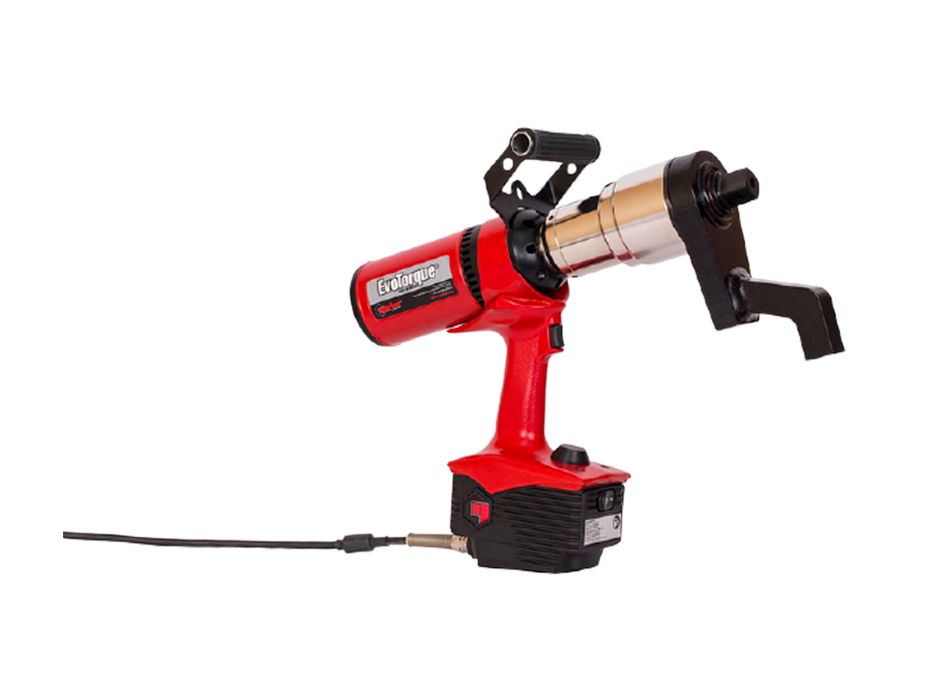

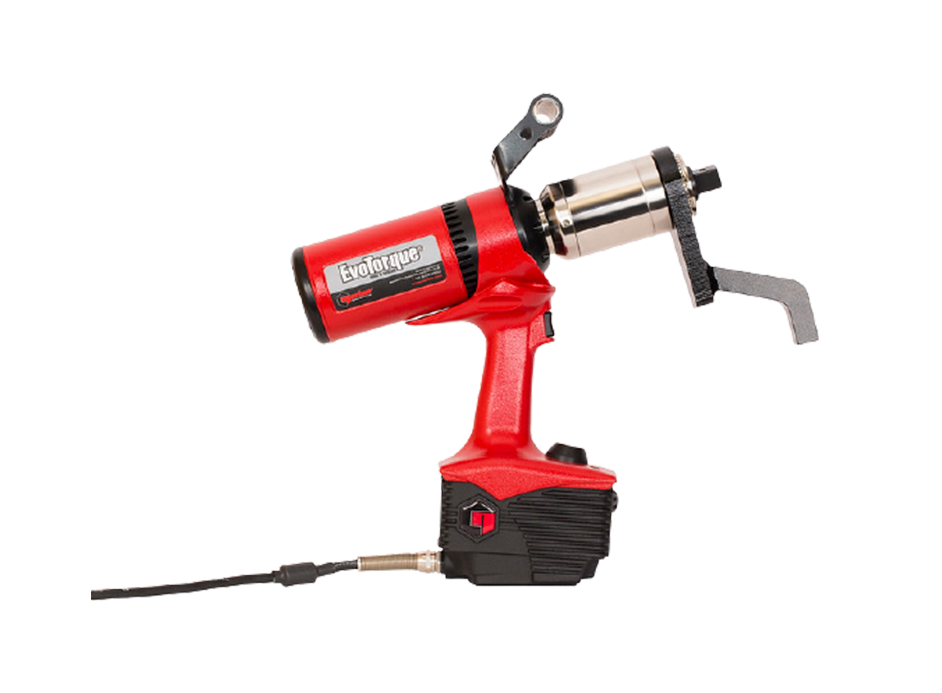

EvoTorque2 can apply torque accurately over a wide range of joint rates from hard (high torque rate) through to soft (low torque rate).
All of our EvoTorque2 tools are highly tolerant of supply voltage and frequency variation. If the supply voltage is outside of tolerance then, as a safety feature, the tool will be prevented from starting.
The tool has four modes of operation: Torque, Torque & Angle, Torque & Angle with Final Torque and Torque Audit.
The unique Audit Mode is a sophisticated feature for testing pre-tightened bolts with minimal impact on the original fastening torque and can provide quality control data for monitoring joint performance over time.
Product
Features
- Accuracy: ±3%
- Operates between: 100.00 - 4000.00 N·m
- Operates between: 74.00 - 3000.00 lbf·ft
- 'Usage' counter gives the ability to see the amount of times the tool has been used since the last reset
- 'Operation Direction' designed primarily for undoing bolts. When doing sequence tightening, it is now possible to undo an incorrectly tightened bolt without interrupting the sequence
- 2 Stage Tightening gives faster application of a Snug Torque & Angle Target
- 'Turn Angle' option can be used to check if bolts have already been tightened in an assembly process
- Allows tool integration into third party control systems
- Maximum Audit Mode target angle increased to 720 degrees
- Ability to produce and store real time graphs via EvoLog
- Two different lock levels, lock level 1 as per previous lock, lock level 2 will not allow user to exit the run screen or change the target
- Torque, Torque & Angle, Torque & Angle with Final Torque or Torque Audit Modes
- Each tool is supplied with a traceable calibration certificate
- Range of models available
