Heavy Duty Y-MECH Lift

The Y-MECH Lift from Totalkare is the ideal solution where a fixed position for lifting operations is needed and the flexibility of mobile vehicle lifts is not required. The lift can come in dfifferent capacities and platform lengths to suit your workshop requirements.

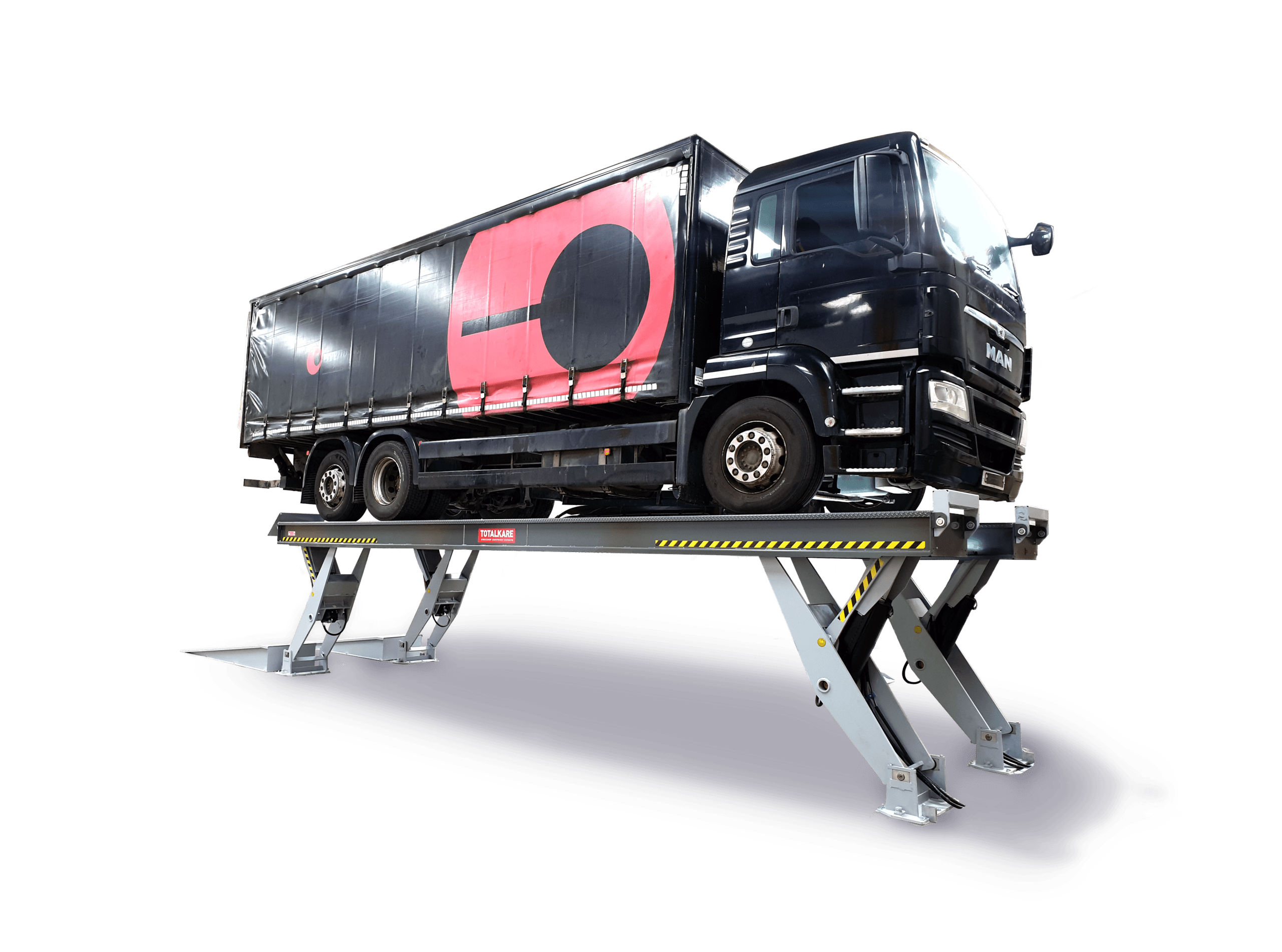

The Y-MECH lift from Totalkare is uniquely designed to provide extraordinary freedom of movement, and is the ideal solution where a fixed position for lifting operations is needed and the flexibility of mobile vehicle lifts is not required. The four independent support legs provide an optimal working space around the lift for the maintenance and repair of heavy duty vehicles.

The Y-MECH Lift is available as surface or recessed mounted and is available in different drive on/drive off options. It can also be supplied fully galvanised which can be used in external washbay applications. Depending on the option chosen, the Y-MECH Lift has a lifting capacity ranging from 25,000kg – 35,000kg and a maximum platform length 14.5m.



  • A range of capacities available from 25,000kg – 35,000kg
  • A range of platform lengths 6m – 14.5m
  • Floor supports are hot-dip galvanised and thus optimally protected against corrosion
  • Mechanical safety latches guarantee max safety of the vehicle in raised a condition
  • Lifts can be fully galvanised for washbay/outside applications
  • Drive on and off, and drive through options available
  • Can be surface mounted or recessed into the floor for a flush fit
  • The user-friendly operator panel can be adapted to local conditions
  • Rollover and roll-back protection to avoid vehicle from dropping down
  • Rails are lifted vertically, thus allowing access all around the lift
  • Lighting provided on the lifts
  • Heavy duty jacking beams in various capacities available
  • IP Rating - the lift electronics are IP67, however the control panel is less
  • Site Surveys upon request
