In-Ground Brake Tester With Load Simulation

To comply with the laden brake testing requirements of the DVSA, the in-ground brake tester offers a quick and reliable way of testing a laden vehicle without the time consuming process of loading a vehicle with testing weights.

Start Your Enquiry Today

Product

Details

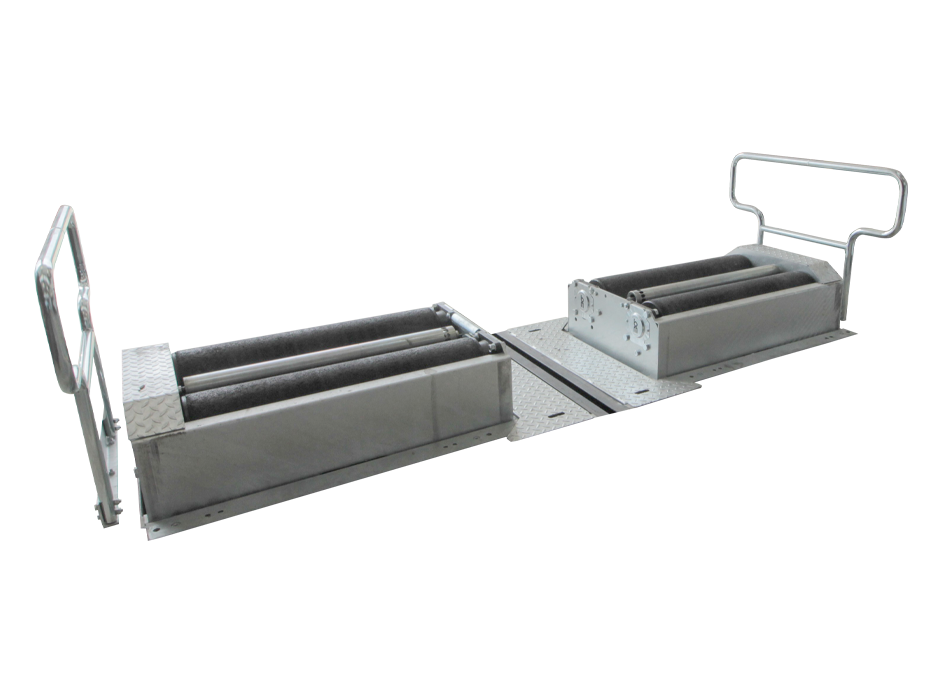

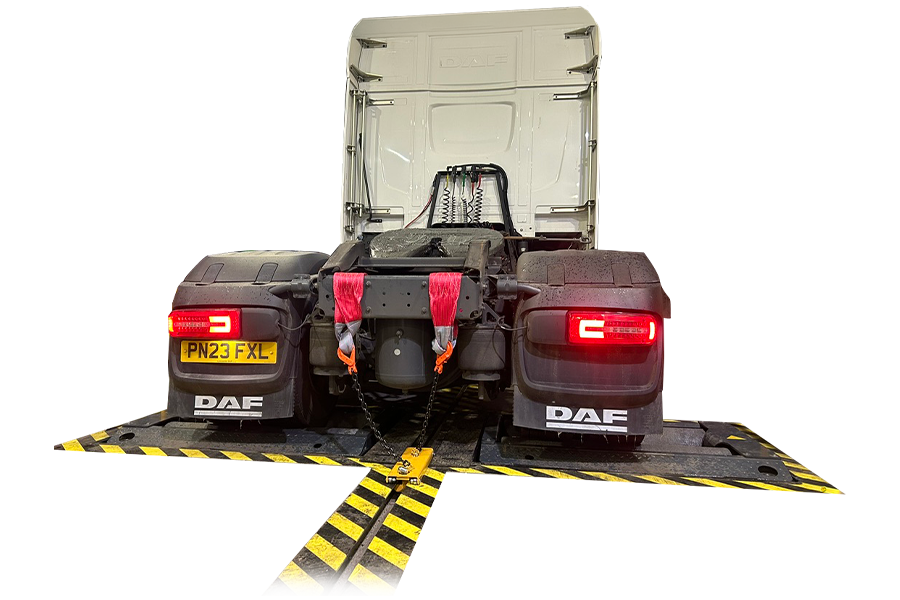

This is a chassis loading brake tester with lifting roller beds. When the lifting beds raise the chains secured to the rails in the ground via the moveable skate and chain apply load to the vehicle/trailer being tested. Using the DTP number of the vehicle the brake tester as standard will apply a 65% load on the axle being tested.

Each roller bed is lifted on 4 hydraulic cylinders and is controlled by software that has built-in safety features, protecting the vehicle and operator during the brake test. It can lift 16,000kg axle loads to a unique height of 255mm above floor level.

The skate and chain move with the vehicle so only one connection to the vehicles chassis as it will move with the vehicle during the test.

Product

Features

  • 16,000kg lifting capacity
  • 16,000/20,000kg test axle weight
  • 255mm lifting height of roller bed
  • Hot galvanised for long lifetime
  • IT system using latest app technology for smartphone and tablet
  • The most comprehensive load simulation system program

Brake Test Savings Calculator

Total Savings
(Over 10years)
What we can save you per year
Year 1
SAVE
Year 2
SAVE
Year 3
SAVE
Year 4
SAVE
Year 5
SAVE
Year 6
SAVE
Year 7
SAVE
Year 8
SAVE
Year 9
SAVE
Year 10
SAVE

Costs based on an average Totalkare brake tester (can alter depending on various bespoke options and additional extras). Calculations assume testing a 2 axle vehicle with two hours labour and fuel costs included. Please note: Figures do not include any civil works

Recommended

Products

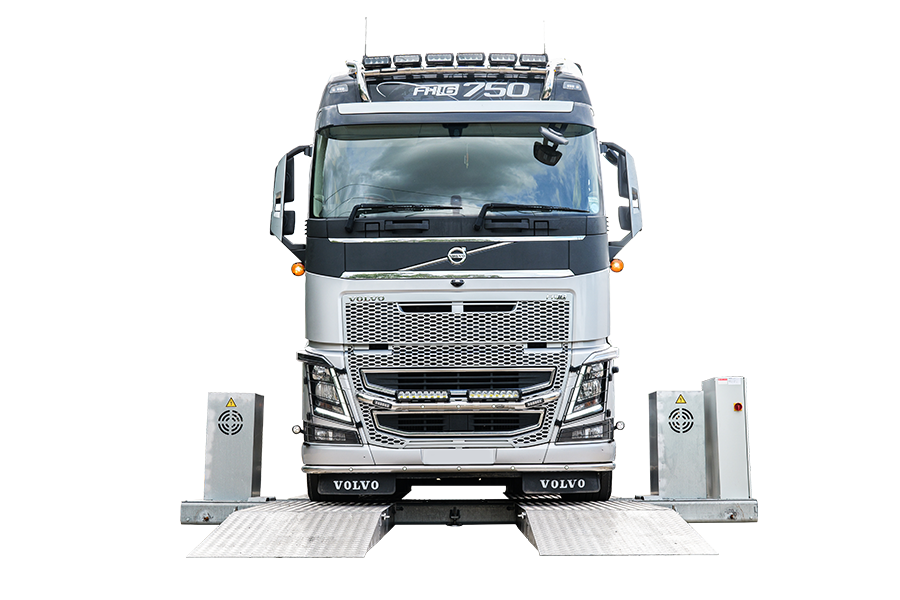

Mobile brake tester
